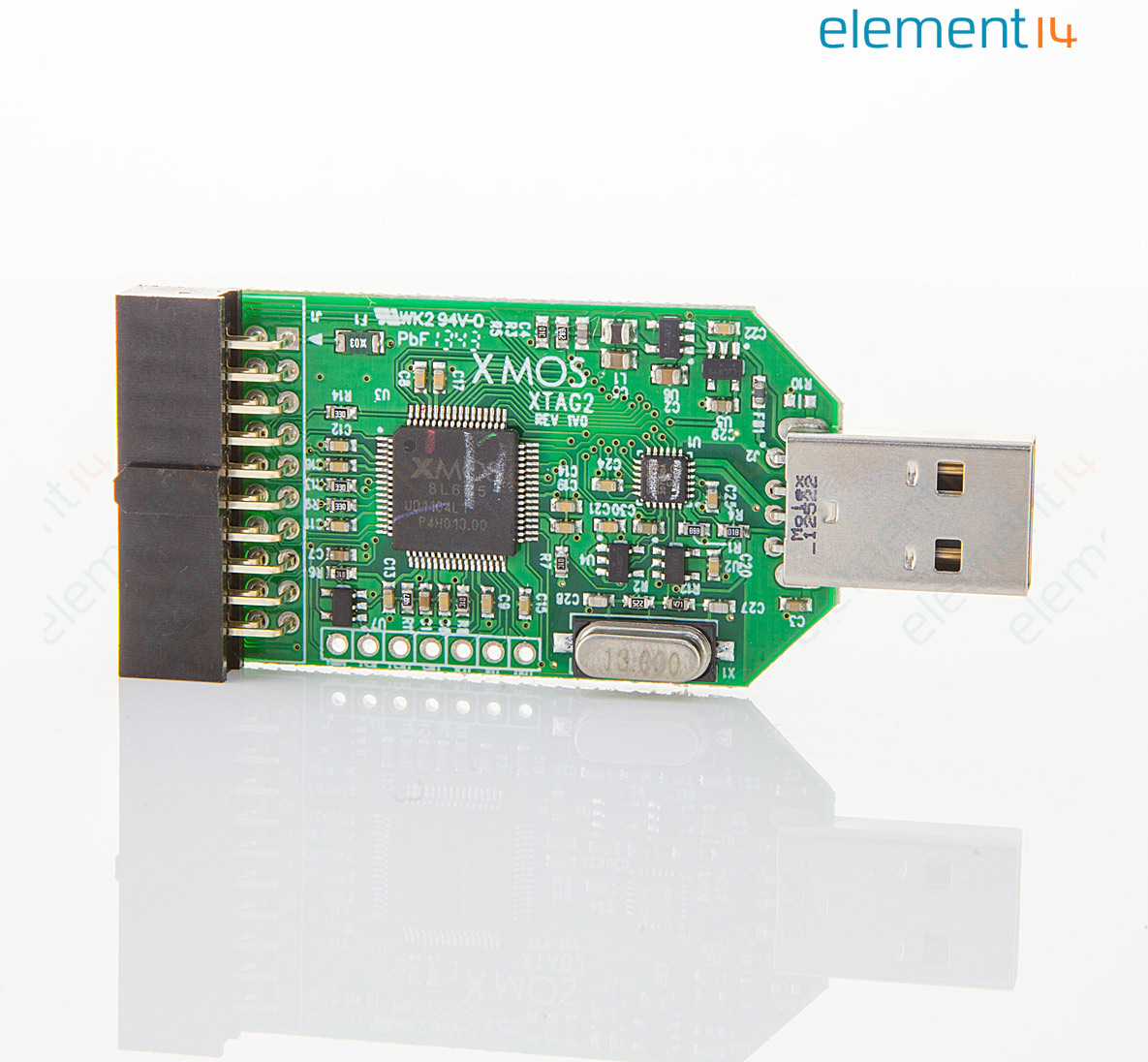

XMOS XA-XTAG
Debug Adapter, xTAG USB-JTAG Bridge, Up to 10MBPS Bridge, UART and xCONNECT Ports Supported
- Manufacturer:
- XMOS XMOS
- Manufacturer Part No:
- XA-XTAG
- Order Code:
- 2455598
-
- Technical Datasheet:
- XA-XTAG Datasheet
- ECAD / MCAD
-
Product Overview
The XA XTAG is a xTAG Debug Adapter provides a high speed, low latency bridge between USB on the host and fast JTAG connection (up to 10Mbps) on the target. Unlike other adapters, the debug stub is executed on the adapter itself. This ensures lightning quick debug functions, such as single stepping, by massively reducing the communications overhead. In addition to the standard debug capability, optional UART and xCONNECT ports are supported, providing communication with the xCORE during run time. These ports to allow print to the console and are the key to our very high performance xSCOPE real time instrumentation. These debug functions are completely soft because the xTAG only contains a USB bootloader, allowing debug capability to be changed or improved on the fly via firmware.
- High speed
Applications
Embedded Design & Development
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- Debugger
- :
- xCORE
- :
- xCORE
- :
- XS1
- :
- xTAG Debug Adapter
- :
- XS1-L8 Core, USB to JTAG, Up to 10Mbps Speed, Optional UART & xCONNECT Ports, XSYS 20way IDC Header
- :
- -
Technical Documents (2)
Contact Sales for a quote
Due to market conditions delivery times are for general guidance only and may be subject to change at short notice
£21.29
Pricing is unavailable. Please contact customer services.
- Price for:
- Each
Multiple: 1 Minimum: 1
- 1+
| Quantity | Price | Your Price |
|---|---|---|
| 1+ | £21.29 | |
